Life Fitness Lower Body Arc Trainer delivers an exceptional low-impact workout that maximizes calorie burn while minimizing stress on the joints. Designed for commercial and home use, this premium cross-trainer features 21 incline levels that allow users to switch between gliding, striding, and climbing motions, effectively engaging the lower body. The Adaptive Power feature automatically adjusts resistance based on speed, making it perfect for interval training, while Constant Power Mode maintains a consistent effort level for endurance workouts. With 100 resistance levels and independent floating pedals, this machine offers a smooth, natural stride that reduces knee strain while optimizing muscle engagement. Its self-powered operation eliminates the need for an external power source, and built-in heart rate monitoring with contact sensors and Polar compatibility ensures accurate tracking during every session.
Each Arc Trainer undergoes a rigorous refurbishment process that restores it to like-new condition.
Specifications:
- Electrical Requirements: Self-Powered (SL Console)
- Input Voltage: Self-Generated
- Amperage: Self-Generated
- Dimensions: 77" L x 36.5" W x 60.5" H
- Unit Weight: 414 lbs.
- User Weight Capacity: 400 lbs.
- Programs: 18 pre-set workouts
-
Incline Levels: 21 settings
- Levels 0-6: Calves, glutes, hamstrings
- Levels 7-14: Calves, glutes, hamstrings, quads
- Levels 15-21: Quads
- Resistance Levels: 100
- Stride Length: 24 inches
- Resistance System: Two-stage drive with brushless Eddy current brake
- Drive Type: Two-stage drive system
- Pedals: Independent Floating Pedal Mechanism
- Heart Rate Monitoring: Contact HR and Polar compatibility
- Power Source: Self-generated
The Cybex SPARC Trainer 50A1 Elliptical is a HIIT trainer that does it all, it is designed provide exceptional results but with less stress. It is biomechanically engineered to be gentler on joints, motivating users to train harder while reducing body strain. With 2 modes of operation: Circuit Mode executes a single and quick high power movement that typically lasts less than a minute and Interval Mode with user-defined high intensity workout and rests, typically lasts longer. Gain strength and build muscles with the Cybex SPARC Trainer 50A1 Elliptical.
Features
- Brand: Cybex
- Display Console: LCD
- Workout: Circuit and Interval
- Graphic Display: Brake resistance level meter
- Numeric display: Meters/Km, Seconds (Countdown), SPM (Strides Per Minute), Time, Total time, Watts
- Resistance Levels: 1-10 levels of brake resistance
- Resistance Range: Fan 0-1000 watts, Resistance Lever (ECB) adds additional 0-400 watts
- Incline Levels: 0, 6, 12% Grade
- Braking System: Brushless Eddy current brake, speed independent
- Stride Length: 24” (61 cm) fixed length
- With water bottle holder
- Power Requirements: Two D-Cell 1.5 v Alkaline batteries
Tech specs
- Max User Weight: 400 lbs (180 kg)
- Product Weight: 285 lbs (129 kg)
- Shipping Weight: 350 lbs (158 kg)
- Dimensions: 71"L x 34.7"W x 60.6"H (180 cm x 88 cm x 154 cm)
The Life Fitness Arc Trainer is a versatile alternative motion cross-trainer that appeals to a wide range of exercisers. Moving arms with multi-grip handles provide a total-body workout that exerts less stress on the knees than walking. The 21 incline levels allow users to choose the type of workout they prefer and the different muscle groups that they want to work. The Arc Trainer is truly a 3-in-1 cardio machine. The wide incline range gives exercisers the ability to glide (lower inclines), stride (medium inclines), or climb (higher inclines). Users can also choose between long cardio workouts, short bursts during interval training, or workouts focused on building power and strength. Fitness facilities have several console options to choose from. They range from simple and intuitive, to entertainment rich and engaging.
Features
- Brand: Life Fitness
- Description Life Fitness Total Body Arc Trainer
- Console: SE3 HD
- Minimum Space between Foot Pedals (inches): 3"
- Step-Up Height (inches): 5.25"
- Colors: Arctic Silver, Diamond White, Black Onyx, Titanium Storm
- Handlebars: Moving handles w/multi-grip and remote resistance controls, cruiser grips
- Stride Length (inches): 24"
- Ramp Angle: 21 levels
- Resistance Levels: 100 levels
- Resistance System: Resistance Range: up to 1200 Watts; Drive Type: Two-stage drive; Brake: Brushless Eddy current brake with generator
- Transport Wheels: Yes
- USB Port: Yes
- Water Bottle Holder/Accessory Tray: Split level display with magazine rack. Centrally located water bottle holder and dual utility trays.
- Self-powered: Integrity SL Consoles only
- Power Requirements: Discover Consoles - 24V, 3.75A (90W) Attachable TV- 24V, 2.5A (60W) SL Non-Treads, Optional Power - 24V, 2.5A (60W)
- Maximum Watts: up to 1200
- Heart Rate: Yes
- Touch: Yes
- Telemetry: Yes
- FOR ALL SE, SE3 and SE3HD standard DTV for live channels via Coax connector available. IPTV and other options must be purchased, installed and configured through Life Fitness technicians themselves.
Life Fitness Discover SE3HD consoles and Cybex 70T now have Samsung Watch® compatibility on March 5th, 2020 under Software Version 4.13. Exercisers can now simply tap their Galaxy Watch on the console of a Life Fitness SE3HD console and Cybex 70T to sync their device. Once connected, the Galaxy Watch sends real-time heart rate data to the machine. After completing a workout, users receive a detailed workout summary on their watch capturing duration, heart rate and calories burned.
- Galaxy Watch, Galaxy Watch Active, Galaxy Watch Active2 are compatible with this latest software update. Note: Samsung Galaxy Watch users must have at least 4.8 software on their watch.
- The Samsung Galaxy watch works with the same hardware used for the Apple watch. RFID without Apple Authentication board will not work with Samsung watch.
Tech specs
- Dimensions: 76.5"L x 36.25"W x 62.5"H (L:194cm, W:93cm, H:159cm)
- Max User Weight: 400 lbs (181 kg)
- Equipment Weight: 412 lbs (187 kg)
- Shipping Weight: 485 - 510 lbs (220 kg - 231 kg)
DISCOVER SE3HD CONSOLE SPECS
- Description: Discover SE3 HD
- Display: 16" LCD Touchscreen
- Navigation: Touchscreen
- Wireless: Standard
- NFC: Standard
- Login: QR Code, Bluetooth Proximity, Manual
- RFID: optional
- USB Port: For Software Updates & Device Charging
- CSAFE-Ready: Yes
- Languages: 22
- Display Readouts: Speed, Incline, Heart Rate (current, average, max), Pace, Elapsed Time, Time Remaining, Time in Zone, Time of Day, Distance, Distance Climbed, Distance Remaining, Calories, Calories/HR, Watts, METs
- # of Workouts: 6 interactive courses, time, distance, calories, climb, HR, intervals, 7 fit tests, custom facility workouts, custom exerciser workouts and performance run
- Telemetry HR: Compatible with Polar & Bluetooth Straps
- TV: Integrated TV
- IPTV Compatible: Yes
- Pro:Idiom Compatible: Yes
- Software Updates: Via Halo.Fitness or USB
- Asset Management: Yes
- Facility Messaging: Yes
- Facility Workouts: Yes
- Custom Attract Screens: Yes
- 3rd Party Apps: Available
- Web Browsing: Yes
- Games & Apps: Netflix, You Tube, Flipboard, Solitaire, Chess, Sudoku, Pandora, Spotify, BBC, ESPN, The Economist
- Virtual Courses: Yes
- Apple Watch GymKit Compatible: Yes
- Samsung Galaxy Watch Compatible: Yes
- On Demand Content: Yes
Life Fitness Discover Arc Trainer w/ SE3 HD Console
- Max User Weight: 400 lbs (181 KG)
- Unit Weight: 510 lbs (231 KG)
- Dimensions: 45"L x 76"W x 33"H (L:114cm, W:193cm, H:84cm)
DISCOVER SE3 HD CONSOLE
The result of insight gained from extensive research that asked what makes a consistently captivating experience. Engaging layouts, a vivid high-definition (1080p) screen and entertainment options like TV, streaming video,Life Fitness On Demand+featuring 500+ complimentary experiences and internet compatibility allow the Discover SE3 HD console to bring facilities to the forefront of the digital fitness world. Also available in a standard definition version that includes the same features.
- Description: Discover SE3 HD
- Display: 16" LCD Touchscreen
- Navigation: Touchscreen
- Wireless: Standard
- NFC: Standard
- Login: QR Code, Bluetooth Proximity, Manual
- RFID: Optional
- USB Port: For Software Updates & Device Charging
- CSAFE-Ready: Yes
- Languages: 22
- Display Readouts: Speed, Incline, Heart Rate (current, average, max), Pace, Elapsed Time, Time Remaining, Time in Zone, Time of Day, Distance, Distance Climbed, Distance Remaining, Calories, Calories/HR, Watts, METs
- # of Workouts: 6 interactive courses, time, distance, calories, climb, HR, intervals, 7 fit tests, custom facility workouts, custom exerciser workouts and performance run
- Telemetry HR: Compatible with Polar & Bluetooth Straps
- TV: Integrated TV
- IPTV Compatible: Yes
- Pro:Idiom Compatible: Yes
- Software Updates: Via Halo.Fitness or USB
- Asset Management: Yes
- Facility Messaging: Yes
- Facility Workouts: Yes
- Custom Attract Screens: Yes
- 3rd Party Apps: Available
- Web Browsing: Yes
- Games & Apps: YouTube, Flipboard, Solitaire, Chess, Sudoku, Pandora, Spotify, BBC, ESPN, The Economist
- Virtual Courses: Yes
- Apple Watch GymKit Compatible: Yes
- Samsung Galaxy Watch Compatible: Yes
- On Demand Content: Yes
- Netpulse (or similar) integration: No

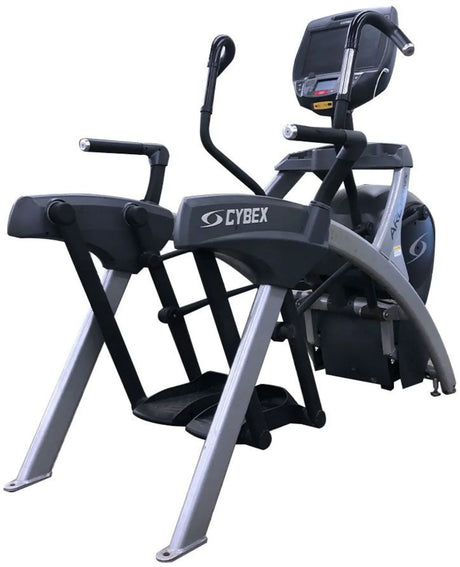

The Cybex 771AT Total Body Arc Trainer is a commercial-grade cardio machine designed to deliver a powerful, low-impact, full-body workout. Built with Cybex’s patented Arc motion, this machine combines the benefits of an elliptical, stepper, and cross-country skier in one versatile unit.
At lower incline levels, the 771AT provides a smooth gliding motion similar to cross-country skiing. At mid-range incline levels, it delivers an elliptical-style stride, and at higher incline settings, it transitions into a climbing motion for a more intense lower-body workout. This makes it an excellent choice for users looking to improve endurance, burn calories, build strength, and reduce joint impact compared with traditional running.
The moving upper-body handles allow users to engage the arms, shoulders, chest, and back while training the legs and glutes. With resistance up to 900 watts, multiple incline levels, and a sturdy commercial frame, the Cybex 771AT is built for gyms, training studios, rehab spaces, and serious home fitness environments.
Key Features
- Commercial-grade total body Arc Trainer
- Patented Cybex Arc motion for low-impact cardio
- Moving upper-body handles for full-body training
- Combines glide, stride, and climb movement patterns
- Resistance range up to 900 watts
- Up to 21–24 incline levels, depending on listing/version
- Approx. 24” stride length
- Maximum user weight: 400 lbs
- Contact heart rate monitoring
- Heavy-duty frame for commercial or home use
- Ideal for weight loss, endurance, strength, and low-impact conditioning
Product Specs
Specification
Details
Brand
Cybex
Model
771AT
Type
Total Body Arc Trainer
Resistance
Up to 900 watts
Incline Levels
Approx. 21–24 levels
Stride Length
Approx. 24”
Max User Weight
400 lbs
Dimensions
Approx. 77” L x 37” W x 63” H
Product Weight
Approx. 404 lbs
Heart Rate
Contact heart rate sensors
Grade
Commercial

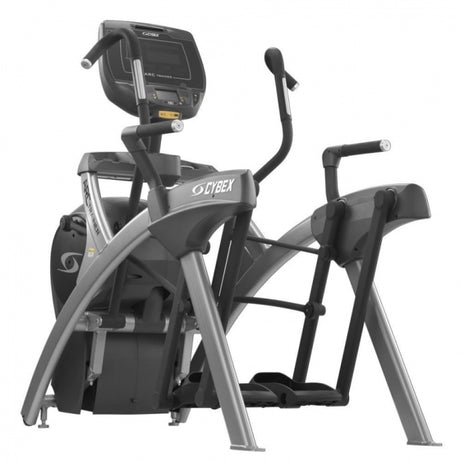

The Cybex 750AT Total Body Arc Trainer is a commercial-grade cardio machine designed for low-impact, full-body training. Built with Cybex’s patented Arc motion, the 750AT delivers an efficient workout that combines elements of a cross-country skier, elliptical, and stepper in one powerful machine.
Unlike the 750A Lower Body Arc Trainer, the 750AT includes moving upper-body handles, allowing users to train the arms, shoulders, chest, back, core, glutes, and legs together. This makes it an excellent choice for calorie burning, endurance training, strength conditioning, and total-body cardio workouts.
The 750AT offers 21 incline levels, a stride length around 23–24 inches, and resistance up to 900 watts, giving users a wide range of training intensity. At lower incline levels, the motion feels like a smooth glide. At mid-range settings, it creates an elliptical-style stride. At higher incline levels, it shifts into a climbing motion for a more intense lower-body workout.
With a durable commercial frame, eddy current brake system, contact heart rate monitoring, and a 400 lb user capacity, the Cybex 750AT is built for gyms, studios, hotels, rehab facilities, and serious home fitness spaces.
Key Features
- Commercial-grade total body Arc Trainer
- Moving upper-body handles for full-body training
- Low-impact patented Arc motion
- 21 incline levels
- 101 resistance levels
- Resistance range up to 900 watts
- Approx. 23–24” stride length
- Contact heart rate monitoring
- Polar® compatible heart rate system
- Eddy current brake system
- Self-powered / cordless operation on many models
- Maximum user weight: 400 lbs
- Great for gyms, studios, hotels, apartments, rehab spaces, and home gyms
Product Specs
Specification
Details
Brand
Cybex
Model
750AT
Type
Total Body Arc Trainer
Incline Levels
21
Resistance Levels
101
Resistance Range
0–900 watts
Stride Length
Approx. 23–24”
Max User Weight
400 lbs
Dimensions
Approx. 77” L x 36.75” W x 62.5” H
Product Weight
Approx. 404–450 lbs
Brake System
Eddy current brake
Drive System
Front drive / belt drive
Heart Rate
Contact heart rate / Polar® compatible
Power
Self-powered / cordless on many versions

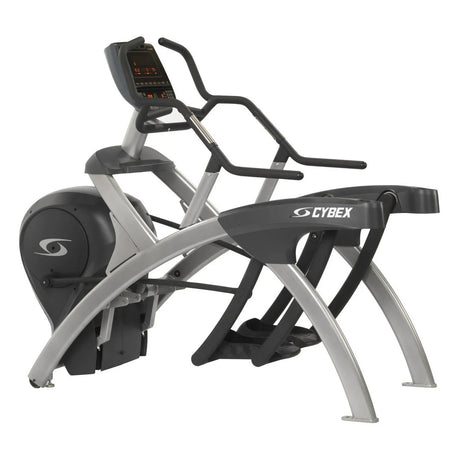

The Cybex 750A Lower Body Arc Trainer is a commercial-grade cardio machine built for powerful, low-impact lower-body training. Designed with Cybex’s patented Arc motion, the 750A helps users burn calories, build endurance, and target major lower-body muscle groups while reducing stress on the knees, hips, and back.
Unlike a traditional elliptical, the Arc Trainer uses an arcuate motion path that changes with incline. At lower incline levels, it creates a smooth gliding motion. At mid-range settings, it feels closer to an elliptical stride. At higher incline levels, it transitions into a climbing motion for more intense glute, quad, and hamstring engagement.
The 750A features a 24-inch stride length, 21 incline levels, and 101 resistance levels with resistance up to 900 watts, making it suitable for beginners, athletes, rehab-style training, and high-intensity cardio workouts. Its commercial frame, contact heart rate monitoring, and 400 lb user capacity make it a reliable option for gyms, studios, hotels, apartments, and serious home fitness spaces.
Key Features
- Commercial-grade lower body Arc Trainer
- Patented Cybex Arc motion for low-impact cardio
- Targets glutes, quads, hamstrings, and calves
- 24” stride length
- 21 incline levels
-
101 resistance levels, up to 900 watts
- Contact heart rate monitoring and Polar® compatibility
- Independent floating pedal mechanism
- Front transport wheels for easier positioning
- Maximum user weight: 400 lbs
- Ideal for gyms, studios, rehab spaces, and home fitness rooms
Product Specs
Specification
Details
Brand
Cybex
Model
750A
Type
Lower Body Arc Trainer
Stride Length
24”
Resistance Levels
101
Resistance Range
0–900 watts
Incline Levels
21
Max User Weight
400 lbs
Dimensions
Approx. 77” L x 36.75” W x 62.5” H
Product Weight
Approx. 450 lbs
Drive System
Front drive, 2-belt system
Brake System
Eddy current brake
Heart Rate
Contact heart rate / Polar® compatible

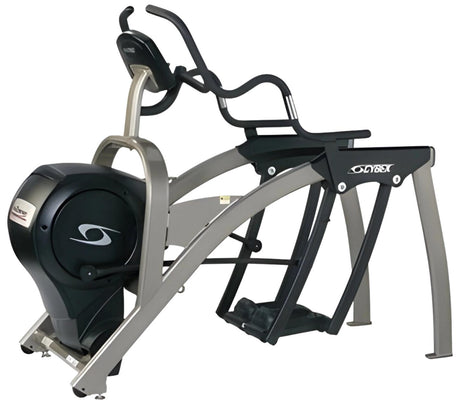

The Cybex 620A Lower Body Arc Trainer is a commercial-grade cardio machine designed for smooth, low-impact lower-body training. Built with Cybex’s patented Arc motion, the 620A combines the feel of a climber, cross-trainer, and cross-country skier, giving users a powerful workout while helping reduce stress on the knees, hips, and back.
With a 24-inch stride length, 11 incline levels, and up to 100–101 resistance levels, the Cybex 620A gives users a wide range of training options, from light cardio to high-intensity conditioning. Its resistance range reaches up to 900 watts, making it suitable for beginners, athletes, rehab-style training, and commercial fitness environments.
The heavy-duty frame supports users up to 400 lbs, while the compact commercial footprint makes it a strong choice for gyms, studios, hotels, apartments, and serious home fitness spaces.
Key Features
- Commercial-grade lower body Arc Trainer
- Low-impact Cybex Arc motion
- Combines climber, cross-trainer, and cross-country ski-style movement
- 24” stride length
- 11 incline levels
- 100–101 resistance levels
- Resistance range up to 900 watts
- Maximum user weight: 400 lbs
- Contact and Polar® heart rate monitoring on many units
- LED console with workout feedback
- Great for gyms, studios, rehab spaces, hotels, apartments, and home gyms
Product Specs
Specification
Details
Brand
Cybex
Model
620A
Type
Lower Body Arc Trainer
Stride Length
24”
Incline Levels
11
Resistance Levels
100–101
Resistance Range
Up to 900 watts
Max User Weight
400 lbs
Dimensions
Approx. 81–82” L x 30” W x 59” H
Unit Weight
Approx. 331 lbs
Power
110V / standard outlet on many units
Heart Rate
Contact / Polar® compatible on many units

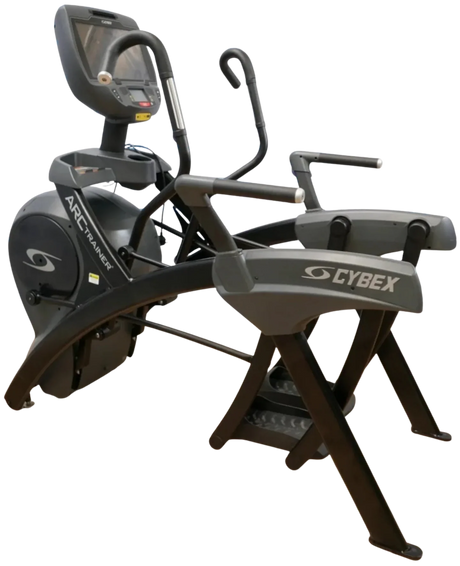

The Cybex 772AT Total Body Arc Trainer is a premium commercial cardio machine built for low-impact, full-body training. Designed with Cybex’s patented Arc motion, the 772AT helps users train for strength, power, endurance, and weight loss while reducing stress on the knees, hips, and back.
The 772AT combines the benefits of multiple cardio machines in one. At lower incline levels, the movement feels like a smooth cross-country ski glide. At mid-range incline levels, it creates an elliptical-style stride. At higher incline levels, it transitions into a stepper-style climb for more intense lower-body activation.
Unlike lower-body-only Arc Trainers, the 772AT includes moving upper-body handles, allowing users to engage the arms, shoulders, chest, back, core, glutes, quads, hamstrings, and calves in one workout. It offers 21 incline levels, a 24-inch stride length, resistance up to 900 watts, and supports users up to 400 lbs.
Key Features
- Commercial-grade total body Arc Trainer
- Moving upper-body handles for full-body training
- Low-impact patented Cybex Arc motion
- 21 incline levels
- Resistance range up to 900 watts
- 24” stride length
- Maximum user weight: 400 lbs
- E3 console / entertainment display on many models
- Contact and wireless heart rate monitoring, depending on configuration
- Great for gyms, studios, hotels, apartments, rehab spaces, and home gyms
Product Specs
Specification
Details
Brand
Cybex
Model
772AT
Type
Total Body Arc Trainer
Incline Levels
21
Resistance Range
Up to 900 watts
Stride Length
24”
Max User Weight
400 lbs
Console
E3 / TV console on many units
Use
Commercial
Movement
Glide, stride, and climb motion
Training Focus
Full body cardio, strength, power, weight loss
